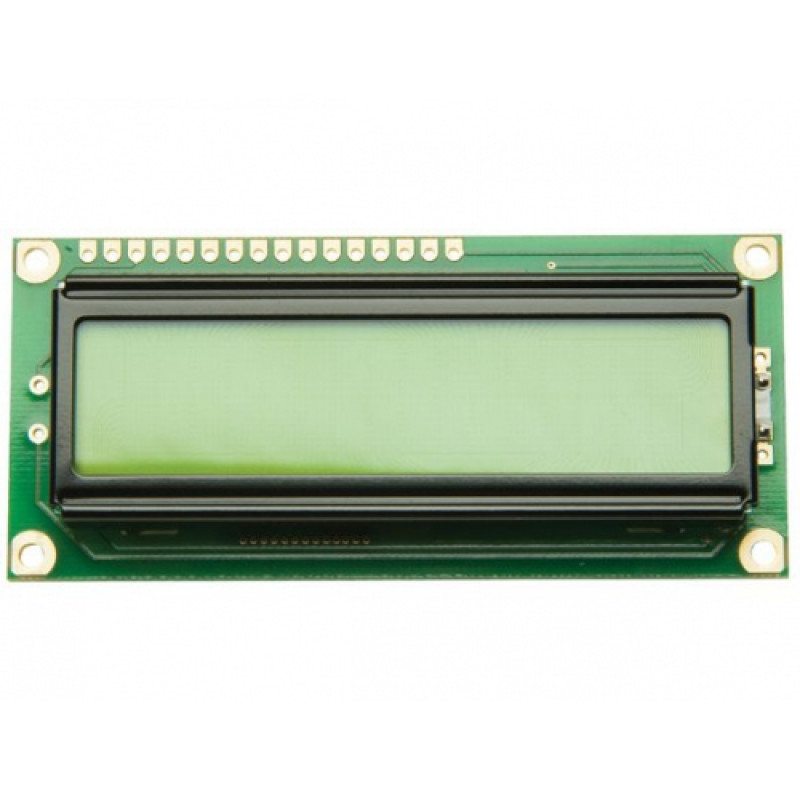

LCD Display with Green Backlight

130.00 {excl. GST}

16 x 2 LCD with Green Backlight (1602) This is a popular 16×2 LCD display. It is based on the HD44870 display controller hence it is easy to interface with most micro controllers. It works of 5V and has a Green Back-light which can be switched on and off as desired.

In stock

Compare

Description

This is a basic 16 character by 2 line Alphanumeric display. Black text on Green background. Utilizes the extremely common HD44780 parallel interface chipset . Interface code is freely available. You will need Minimum 6 general I/O pins to interface to this LCD screen. Includes LED backlight. Works in 4bit and 8 bit Mode.

Features and Specifications:

  • Wide viewing angle and high contrast.
  • Industry-standard JHD629-204A equivalent LCD controller built-in.
  • +5V DC supply with 33 Ohm resistor LED backlight.
  • Supported 4 or 8-bit parallel interface.
  • Display 4-line X 20-character.
  • Operate with 5V DC.=
  • Interface with 16 pins male header Connector.
  • 20 characters wide, 4 rows
  • Black text on the yellow background
  • The module can easily interface with an MCU
  • The module is a low-power consumption character LCD Module with a built-in controller
  • Single LED backlight included can be dimmed easily with a resistor or PWM.
  • Can be fully controlled with only 6 digital lines! (Any analog/digital pins can be used)

Package Includes:

16*2 Parallel LCD Display with Green Backlight
