Sale!

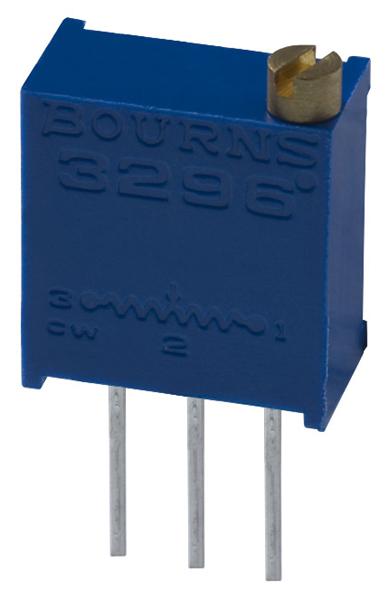

100k Trimpot Trimmer Potentiometer 10pc(s)

100.00 {excl. GST}

A general purpose board mountable preset also called by others names like potentiometers, trimpots, etc but is basically just a variable resistor. This preset has to be turned 10 times to vary the resistance from 0 to full range, and hence provides greater accuracy.

In stock (can be backordered)

Compare
Category:

Description

A general purpose board mountable preset also called by others names like potentiometers, trimpots, etc but is basically just a variable resistor. This preset has to be turned 10 times to vary the resistance from 0 to full range, and hence provides greater accuracy.

It has 3 leads coming out of it. The outer two pins always have a resistance of 100k between them and the resistance between one of the outer pins and the center pin varies between 0 to 100kas the potentiometer is rotated.

This potentiometer can also be used as a variable resistor and to generate a variable voltage. To use this potentiometer as a variable resistor, connect the outer two pins to Vcc and 0 V and the center pin outputs a variable voltage between 0 V and Vcc as the potentiometer is rotated.
